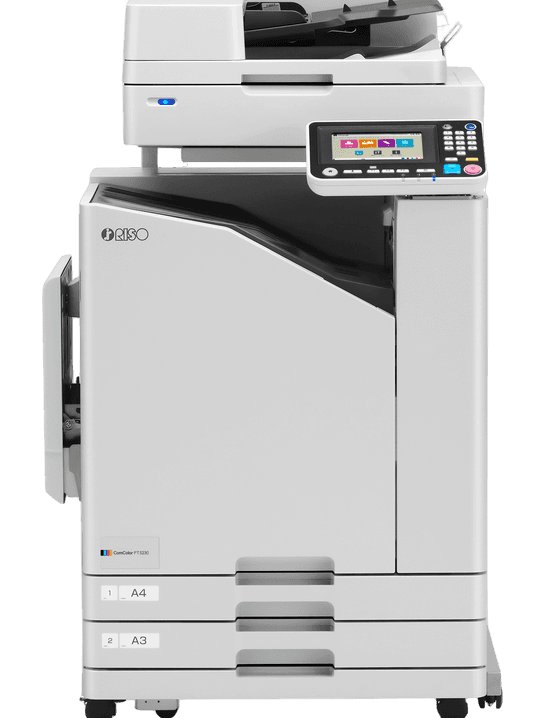

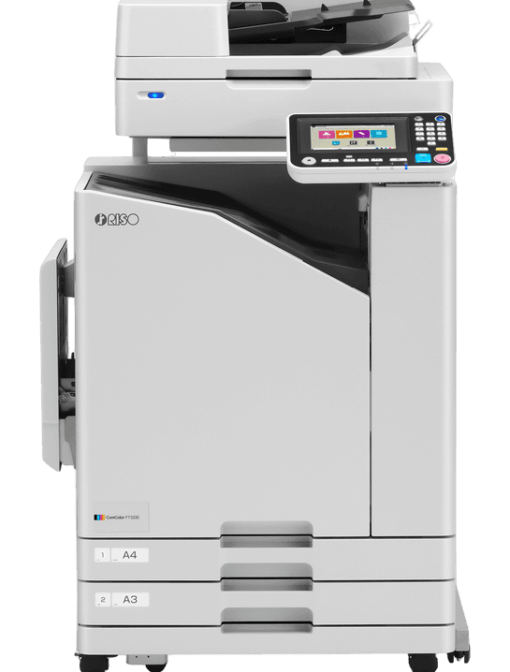

ComColor FT5230
- Up to 120 pages / minute
- A4 / A3 formats
- 1 side bin (1000 sheets) 2 front bins (2 x 500 sheets)
ENERGY STAR
Ecolabel relating to the energy efficiency of office equipment.
BLUE ANGEL
Environmental certification relating to recycling, pollution reduction and energy consumption.
EPEAT
Ecolabel assessing the effect of a computer product on the environment.
Specifications
| Print Type | Line-type inkjet system | |
| Ink Type | Oil-based pigment ink (Cyan, Magenta, Yellow, Black) | |
| Print Resolution | Standard: 300 dpi (main scanning direction) × 300 dpi (sub-scanning direction) | |
| Fine: 300 dpi (main scanning direction) × 600 dpi (sub-scanning direction) | ||
| Number of Gray Levels | For each CMYK color (11 gray levels) | |
| Data Processing Resolution | Standard: 300 dpi × 300 dpi | |
| Fine: 600 dpi × 600 dpi | ||
| Line smoothing: 600 dpi × 600 dpi | ||
| Warm-up Time | 2 min. 30 sec. or less (at room temperature of 23ºC (73.4ºF)) | |
| First Print Time *1 | 5 sec. or less (A4 Long-edge Feed) | |
| Continuous Print Speed *2 | A4 Long-edge feed | Simplex: 120 ppm Duplex: 60 sheets/minute (120 ppm) |
| Letter Long-edge feed | Simplex: 120 ppm Duplex: 60 sheets/minute (120 ppm) | |
| A4 | Simplex: 90 ppm Duplex: 45 sheets/minute (90 ppm) | |
| Letter | Simplex: 90 ppm Duplex: 45 sheets/minute (90 ppm) | |
| B4 (JIS) | Simplex: 76 ppm Duplex: 34 sheets/minute (68 ppm) | |
| Legal | Simplex: 76 ppm Duplex: 35 sheets/minute (70 ppm) | |
| A3 | Simplex: 66 ppm Duplex: 32 sheets/minute (64 ppm) | |
| Ledger | Simplex: 65 ppm Duplex: 32 sheets/minute (64 ppm) | |
| Paper Size | Standard Tray | Maximum: 340 mm × 550 mm (13 3/8″ × 21 5/8″) *3 |
| Minimum: 90 mm × 148 mm (3 9/16″ × 5 27/32″) | ||
| Feed Tray | Maximum: 297 mm × 432 mm (11 11/16″ × 17″) | |
| Minimum: 182 mm × 182 mm (7 3/16″ × 7 3/16″) | ||
| Printable Area | Maximum: 310 mm × 544 mm (12 3/16″ × 21 13/32″) | |
| Guaranteed Print Area *4 | Standard: Margin width of 5 mm (7/32″) | |
| Maximum: Margin width of 3 mm (1/8″) | ||
| Paper Weight | Standard Tray | Simplex:46 gsm to 210 gsm (12-lb bond to 56-lb bond) *5 |
| Duplex: 46 gsm to 210 gsm (12-lb bond to 56-lb bond) *5 for A4/46 gsm to 104 gsm (12-lb bond to 28-lb bond) for A3, B4 (JIS) | ||
| Feed Tray | Simplex/Duplex: 52 gsm to 104 gsm (14-lb bond to 28-lb bond) | |
| Paper Tray Capacity | Standard Tray | Height up to 110 mm (4 5/16″) |
| Feed Tray | Height up to 56 mm (2 3/16″) (2 trays) | |
| Output Tray Capacity | Height up to 56 mm (2 3/16″) | |
| Page Description Language | RISORINC/C IV | |
| Supported Protocols | TCP/IP, HTTP, HTTPs (TLS), DHCP, FTP, LPR, IPP, SNMP (SNMP v1), Port 9100 (RAW port), IPv4, IPv6, IPSec (IKEv1) | |
| Supported Operating Systems | Standard | Microsoft®: Windows® 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit), Windows Server® 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2016 (64-bit), Windows Server 2019 (64-bit)*6 |
| Optional *7 | Mac: macOS v10.12 (Sierra), v10.13 (High Sierra), v10.14 (Mojave), v10.15 (Catalina), v11 (Big Sur) *6 | |
| Linux®: Compatible with PPD only | ||
| Network Interface | Ethernet 1000BASE-T/100BASE-TX/10BASE-T×2 Channel | |
| Memory Capacity | 4 GB | |
| Hard Disk *8 | Capacity | 500 GB |
| Available Space | Approx. 430 GB | |
| Operating System | Linux | |
| Power Source | AC 100 – 240 V, 10.0 – 5.0 A, 50 – 60 Hz | |
| Power Consumption | Max. 1,000 W | |
| Ready *9: 95 W or less | ||
| Sleep *10: 2 W or less | ||
| Stand-by: 0.4 W or less | ||
| Operating Noise | 62 dB (A) or less at printing | |
| Operating Environment | Temperature: 15 ºC to 30 ºC(59ºF to 86ºF) | |
| Humidity: 40% to 70% RH (non-condensing) | ||
| Dimensions (W × D × H) | In use: 1,030 mm × 735 mm × 1,115 mm(40 19/32″ × 28 15/16″ × 43 29/32″) | |
| With cover and tray closed: 775 mm × 710 mm × 970 mm(30 17/32″ × 27 15/16″ × 38 7/32″) | ||
| Weight | Approx. 136 kg (299 lb) | |
| Dimensions When Operating (W × D × H) | With the front cover open and the operation panel in the upright position: | |
| 1,185 mm × 1,225 mm × 1,115 mm(46 21/32″ × 47 27/32″ × 43 29/32″) | ||
| Accessories | Scanner HS7000, Additional 2000 Sheet Feeder FG20, Face Down Finisher F10, | |
| Multifunction Finisher FG20/Folder Unit FG20, Auto-Control Stacking Tray II, Wide Stacking Tray, | ||
| ComColorExpress RS1200C, PS Kit FG10, IC Card Authentication Kit II, Envelope Feed Kit, Card Feed Kit | ||
*1:Within 10 minutes after the last print job.
*2:When using plain paper and recycled paper (85 gsm), and standard density setting. Chart used: Print measurement pattern [Color measurement sample 2 (JEITA standard pattern J6)]. The continuous print speed varies depending on the type of optional output equipment connected. Face Down Finisher: Without offset: 120 sheets/minute (A4-LEF Simplex), Offset output: 105 sheets/minute (A4-LEF Simplex).
*3:When using duplex print: 340 mm × 460 mm.
*4:The guaranteed area when printing images is the area enclosed within 5 mm of the edges of the paper. The margin when printing envelopes is 10 mm.
*5:Duplex printing is not guaranteed with thick paper the weight of which is greater than 104 gsm.
*6:For the OS version, please contact your local sales representative.
*7:Optional PS Kit FG10 or ComColor Express RS1200C is required.
*8:One gigabyte (GB) is calculated as 1 billion bytes.
*9:Without printing and temperature adjustment operation.
*10:When setting [Power Consumption (in sleep)] to [Low].
